CCTV Cameras IP66 AHD CCTV Camera Waterproof IR Bullet Camera 1200TVL 1/4" CMOS
|
Produktdetails:
Zahlung und Versand AGB:
|
Ausführliche Produkt-Beschreibung
| Material: | Metal | Farbe: | Weiß |
|---|---|---|---|
| IR: | ¢5X72pcs LED | Ir-Abstand: | 60M |
| Objektiv: | 2.8-12mm Handbuch-Zoomobjektiv (2 Megapixel) | Gewicht: | 1800g |
| Wasserdicht: | IP66 | Größe: | 300mm x 125mm x 105mm |
| Markieren: | HD CCTV Camera,high definition cctv camera |
||

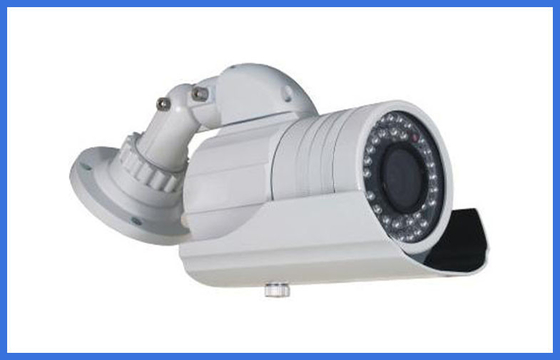

CCTV Cameras IP66 AHD CCTV Camera Waterproof IR Bullet Camera 1200TVL 1/4" CMOS
Quick Detail:
◆ 1/4" OV9712+NEXTCHIP2431H 1.0 Megapixel CMOS Sensor
◆ 1200TV Lines 720P: 1280 * 720, at 30fps
◆ Waterproof IR Bullet Camera
◆ IR LED: ￠5X72pcs, IR Range: 60M
◆ Lens: 2.8-12mm Manual Zoom Lens(2 Megapixel)
◆ Water Resistance: IP66
◆ 3-Axis Cable Built-in Bracket
◆ Size: 300mm x 125mm x 105mm
◆ Weight: 1.8kg
Features:
1. Uses high performance 1/4 "CMOS image sensor;
2. BNC interface,support 75-3 coaxial-cable lossless,transmission is up to 500 meters;
3. Real-time transmission, zero delay;
4. Supports AHD HD and SD output analog switch;
5. IR-CUT day and night switching;
6. Supports OSD menu to adjust the parameters (optional);
7. Infrared night vision distance: 10-30M.
Applications:
Applicable to financial services, supermarkets, telecommunications, government, schools, airports, factories, hotels and other places HD quality requirements
Specifications :
| Camera lens | 2.8-12mm Manual Zoom Lens(2 Megapixel) |
| Image sensor | 1/4" OV9712+NEXTCHIP2431H,1.0 Megapixel CMOS Sensor |
| Resolution | The PAL/NTSC:AHD-M definition (TVL) equivalent to HD 720P IP camera |
| Minimum illumination | Color: 0.01Lux@ (F1.2, AGC, ON), 0 Lux with IR; Black and white: 0.001Lux@ (F1.2, AGC ON), 0 Lux with IR |
| Video standards | Follow AHD and CVBS standard |
| Electronic shutter | 1/50 (1/60) seconds to 1/100000 seconds |
| OSD menu | optional |
| Infrared distance | 10-50 M |
| Maximum transmission distance | Common 75-3 coaxial-cable transmit 500M |
| SNR | More than 58dB |
| The synchronization system | Internal synchronization |
| Type of lens | Manual / DC / video |
| Shutter / AGC | Automatic / manual |
| White balance | Automatic white balance |
| Day and night mode | Automatic / black and white / color |
| Synchronous mode | Internal synchronization |
| Video output | 1 channel AHD HD signal/standard definition CVBS(Switchable) Composite1Vp-p/750hms |
| Power input | DC12V/1A |
| Working temperature | -10 degrees C-60 degrees C |
| Working humidity | Humidity is less than 90% |
| Power | Less than 6W (IR LED not opened), less than 10W (IR LED on) |
